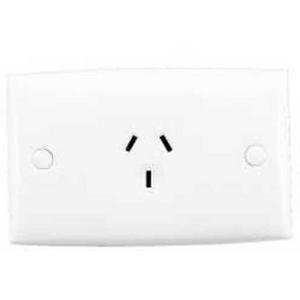

POWER OUTLET AUTO SWITCHED HORIZONTAL STARD SERIES SINGLE 10A 250V WHITE ELECTRIC
Ideal Part:
CLI10WE
Mfr Number:
10-WE
Barcode:
9311554032142
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Carton
100 EAC
1 Pack
5 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
POWER OUTLET AUTO SWITCHED HORIZONTAL STARD SERIES SINGLE 10A 250V WHITE ELECTRIC
Plugmatic Automatic Switched Socket. Plate Size 115mm x 73mm, Mounting Centres 84mm. Base Projection 13mm. Cut Out to suit Base 45mm Diameter. Terminals Accommodate 4 x 2.5mm Sq. Cables. 250V 10A ac only, Single Pole
Plugmatic Automatic Switched Socket. Plate Size 115mm x 73mm, Mounting Centres 84mm. Base Projection 13mm. Cut Out to suit Base 45mm Diameter. Terminals Accommodate 4 x 2.5mm Sq. Cables. 250V 10A ac only, Single Pole
Not the product you were looking for? Check out other items in the Surface Socket
Technical Specifications
Technical Specifications
Does this product not have all the features you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Surface Socket |
|
| Model |
Australian standard AS/NZS 3112 (type I)
|
|---|---|
| Number of active contacts (flat) |
3
|
| With signal lamp |
No
|
| Number of units |
1
|
| Number of modules (module system) |
0
|
| Number of socket outlets switchable |
1
|
| Number of phases |
1
|
| Imprint/indication |
Without imprint
|
| Connection type |
Other
|
| With enhanced contact protection |
Yes
|
| Label space/information surface |
No
|
| Colour |
White
|
| Transparent |
No
|
| Lockable |
No
|
| Eject-mechanism |
No
|
| With function lighting |
No
|
| With orientation lighting |
No
|
| Fault current protection |
No
|
| With miniature fuse |
No
|
|---|---|
| Special power supply |
Other
|
| Mounting method |
Flush-mounted
|
| Type of fastening |
Mounting with screw
|
| Material |
Plastic
|
| Material quality |
Thermoplastic
|
| Surface protection |
Untreated
|
| Anti-bacterial treatment |
No
|
| With loop through function |
No
|
| With on/off switch |
Yes
|
| Rotated central insert |
No
|
| Nominal current |
10 A
|
| Nominal voltage |
250 V
|
| Frequency |
50 Hz
|
| Device width |
73 mm
|
| Device height |
115 mm
|
| Device depth |
16 mm
|
